Pine and Poplar

Modular Sectional Printable Plans Bundle

Modular Sectional Printable Plans Bundle

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Shipping calculated at checkout.

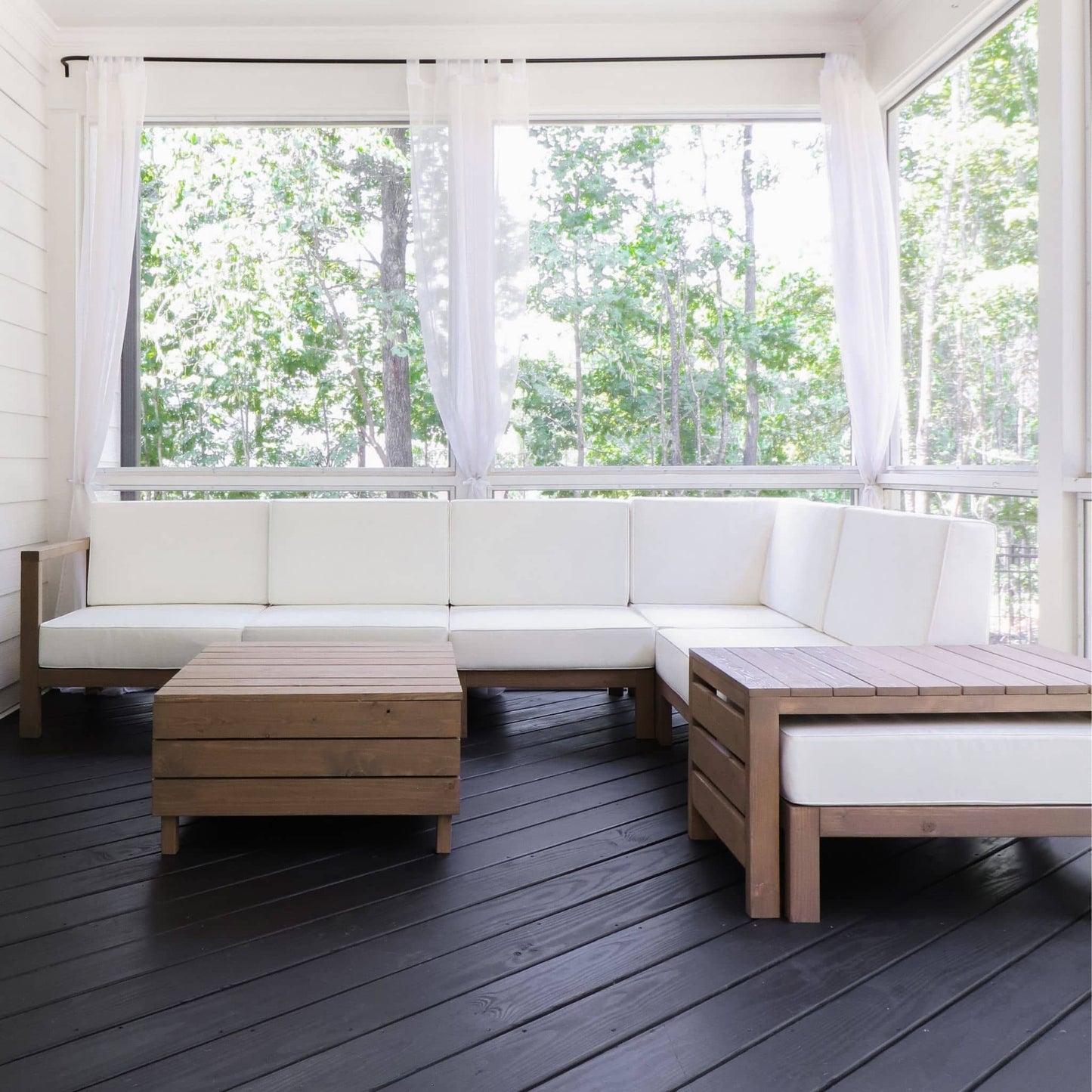

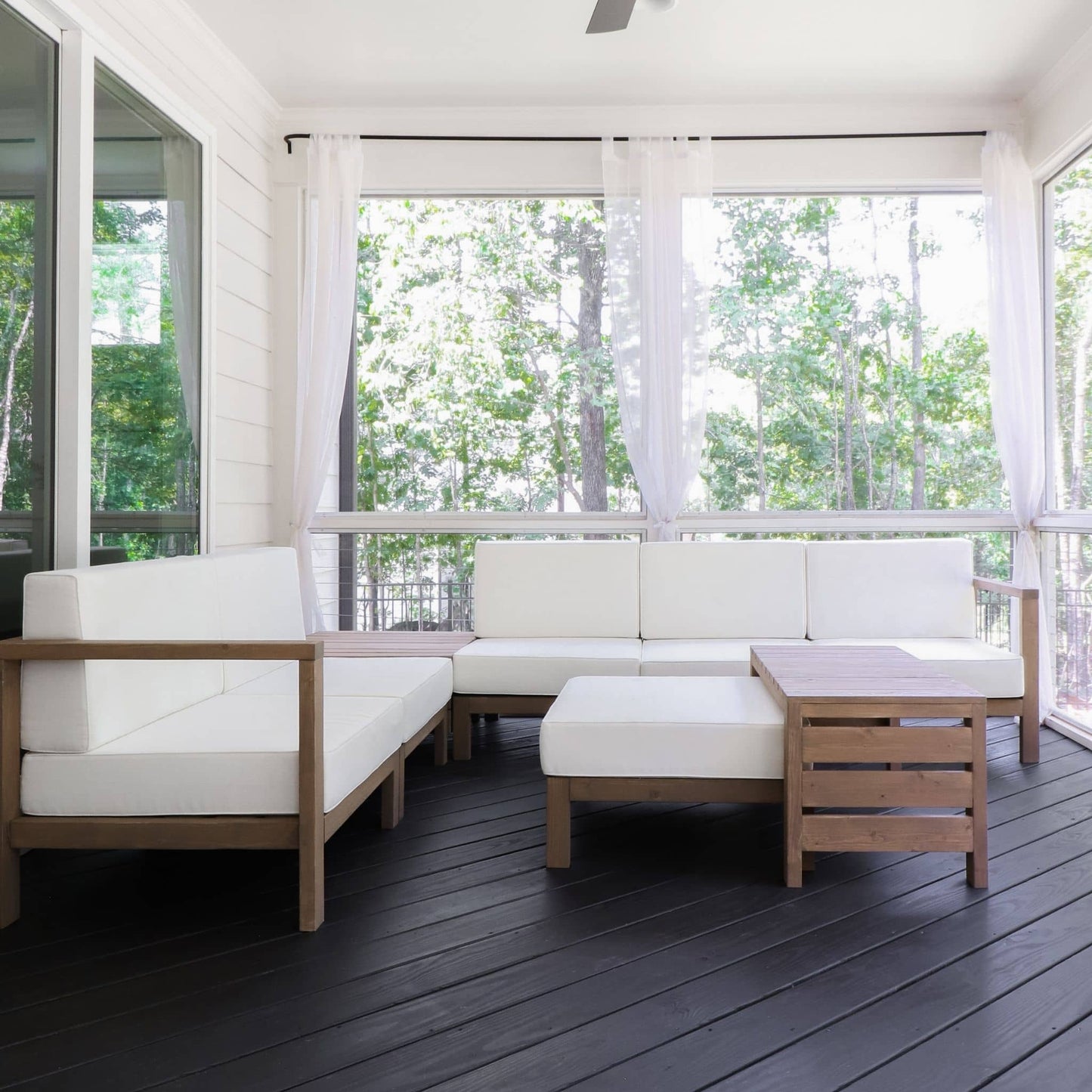

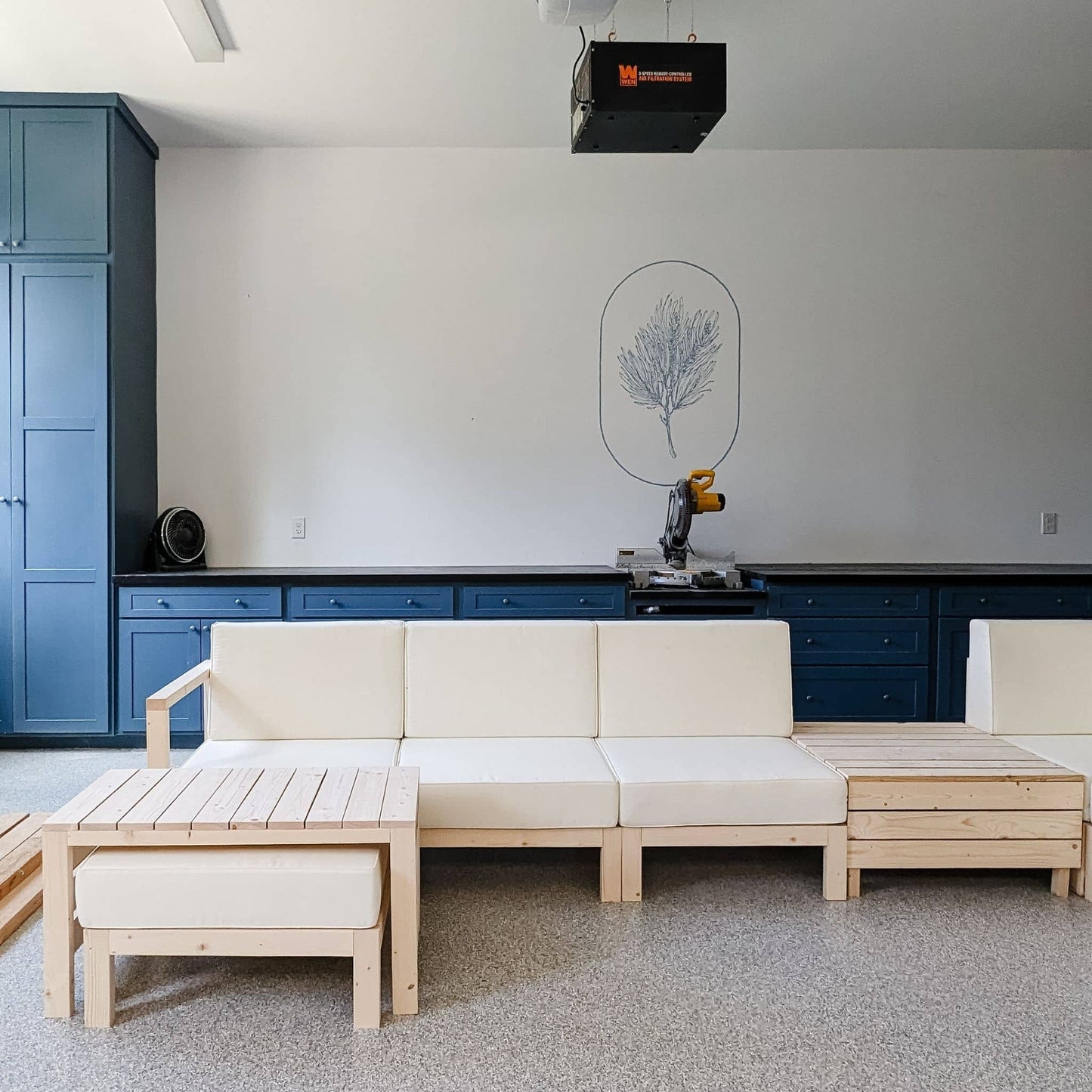

Build your own custom outdoor sectional using these step-by-step premium printable plans!

This might be our greatest plan to date. This printable plan includes tutorials on how to build all 6 pieces in our DIY outdoor sectional so you can create the custom outdoor seating of your dreams--that's 4 chair options and 2 table designs.

We include 12 possible configurations to help get your wheels turning, but feel free to create any configuration you want! Once you decide on how many pieces you want to build, you'll head over to our BONUS cut list calculator. This thing is AMAZING.

You can simply enter in the quantities of each piece you want to build and it'll spit you out a custom cut list AND you can even customize things even further:

Have a different cushion size? No problem. Update it in the calculator and BAM -- your whole cut list is instantly updated.

Want to use metric units instead? Great! Just enter in the wood sizes you have available in metric units and the calculator will auto-populate your new cut list...in the same units you entered them in!

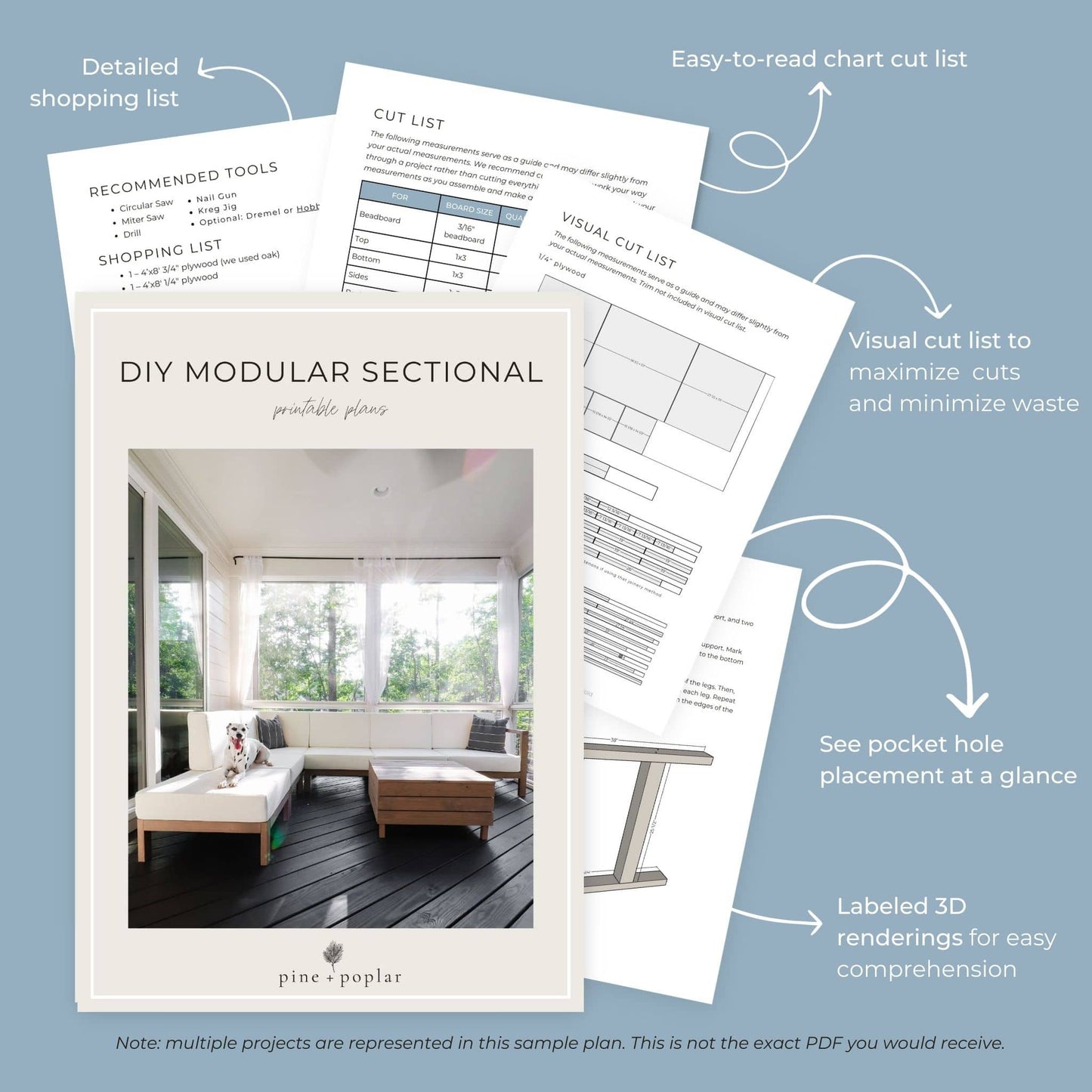

THESE PREMIUM PLANS INCLUDE:

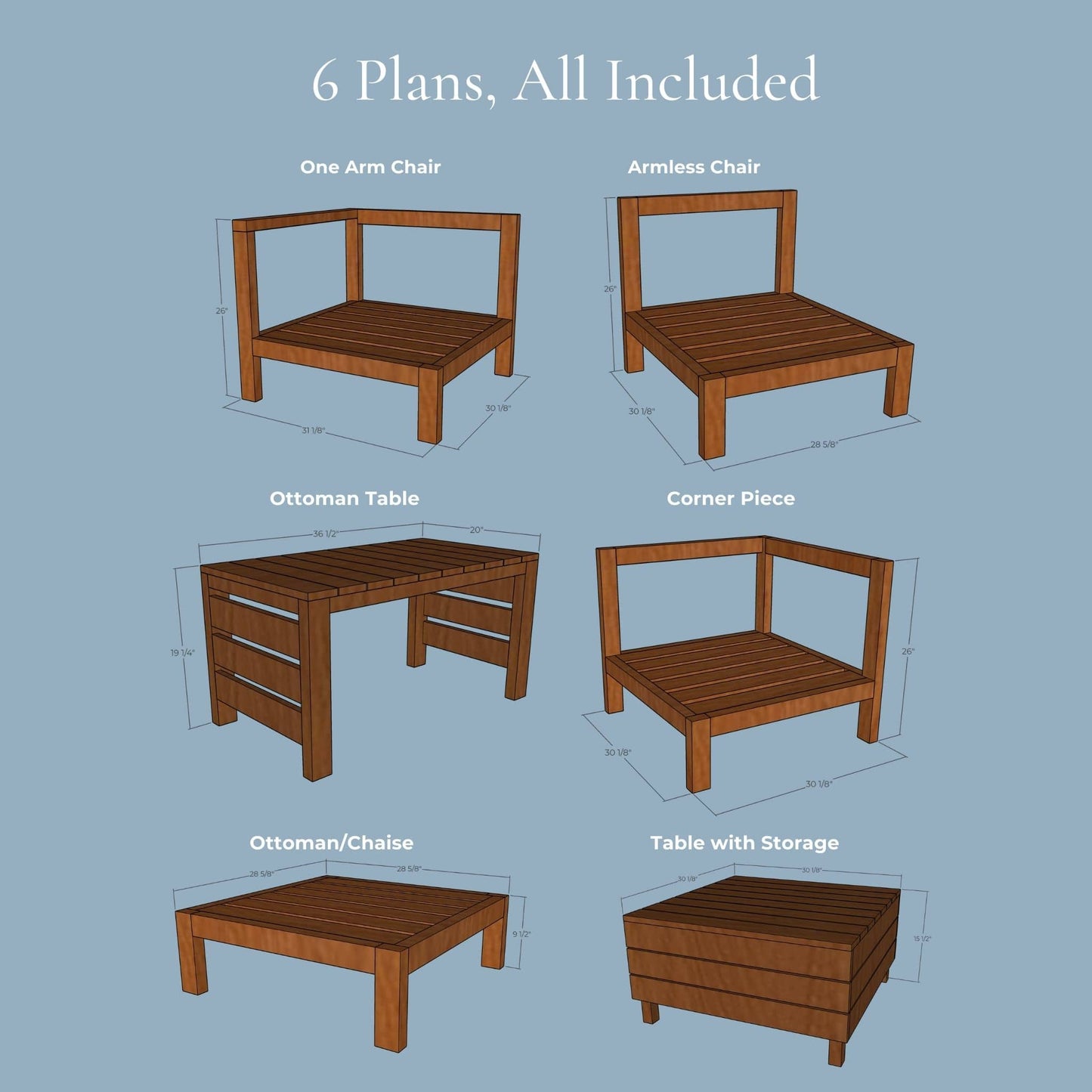

  1. 3D renderings labeled with dimensions and important call-outs

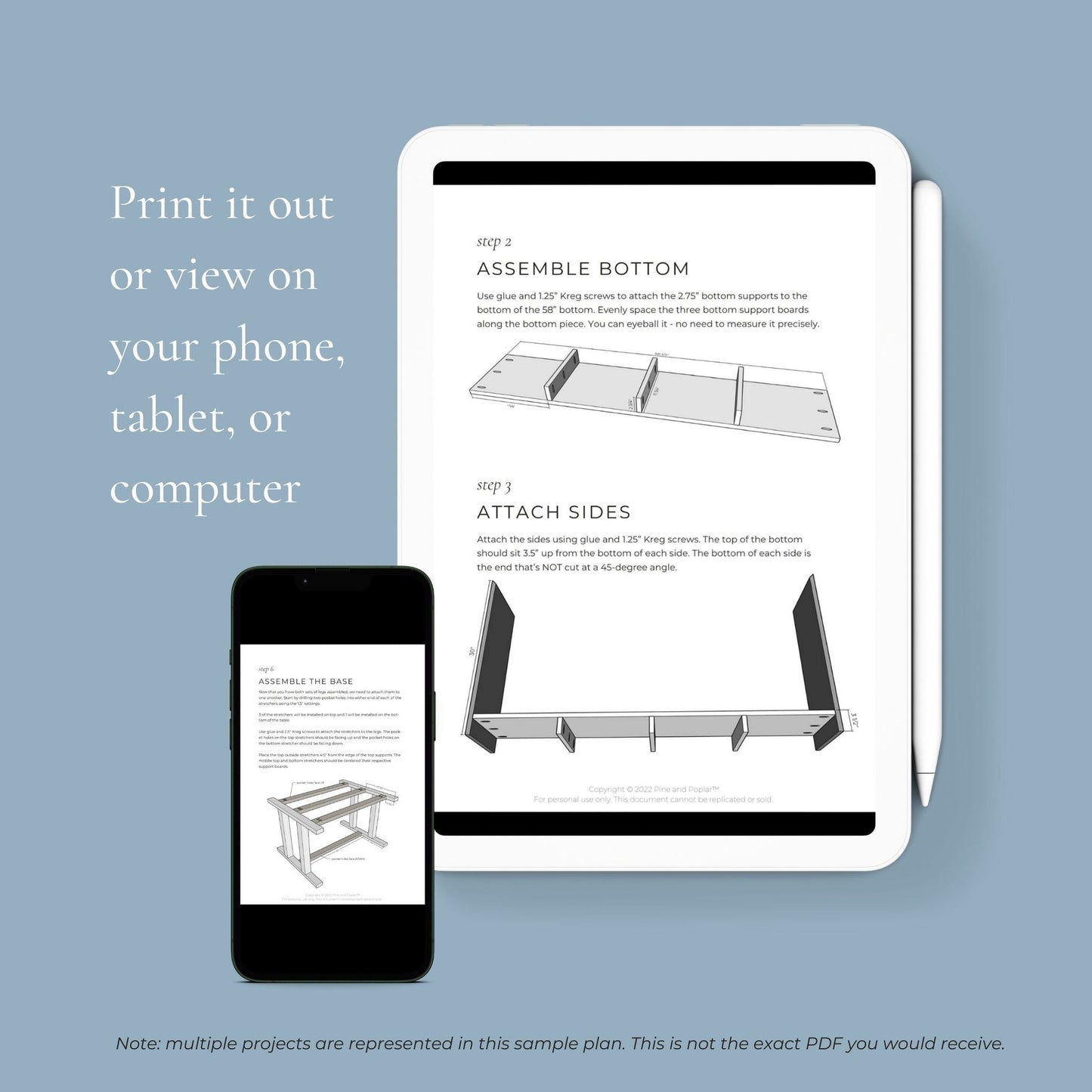

  2. Step-by-step instructions for SIX modular sectional pieces
  3. Shopping list
  4. Cut list provided 2 ways: an easy-to-read chart, and a visual cut list to see how to cut each board to minimize waste

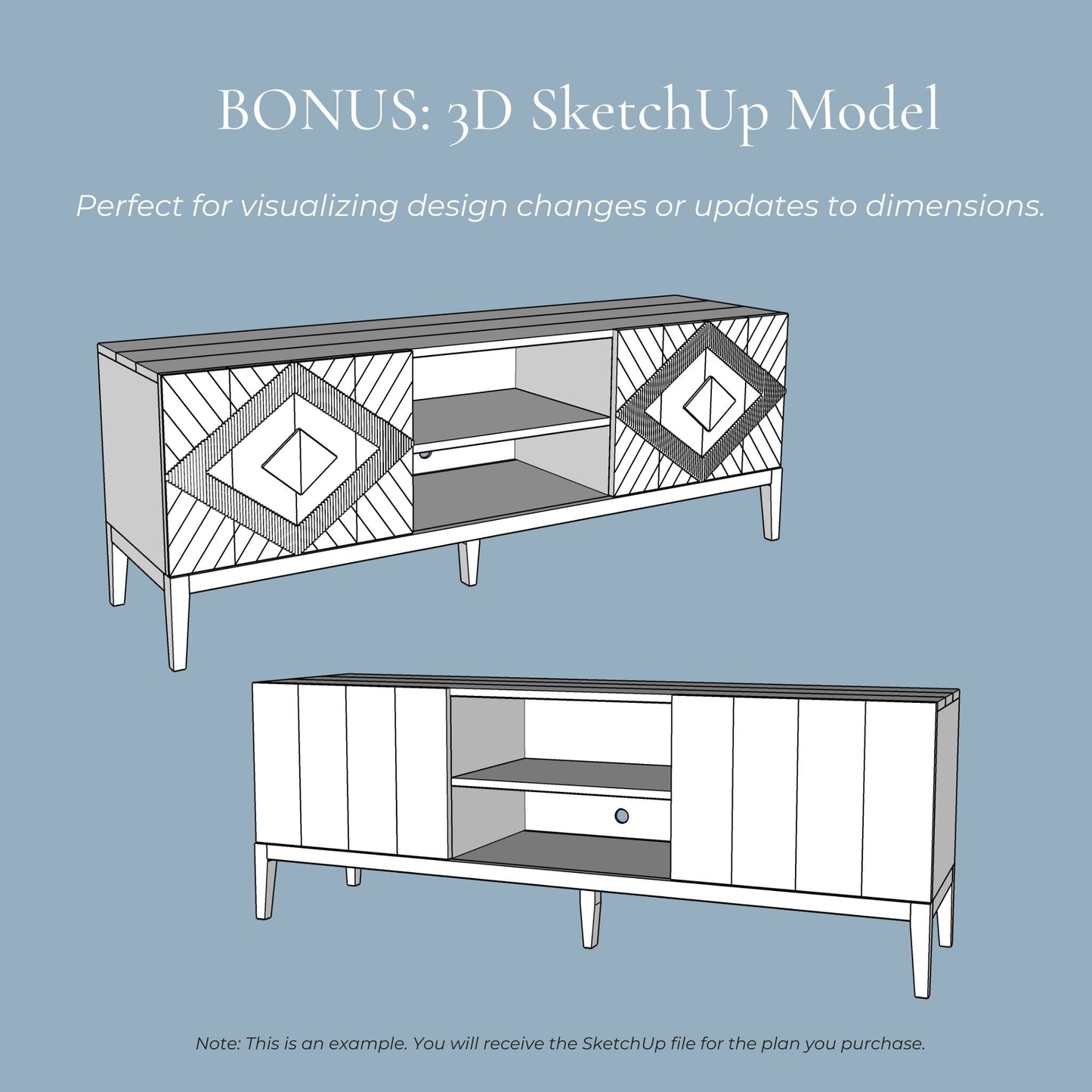

  5. BONUS: 3D SketchUp file of the project

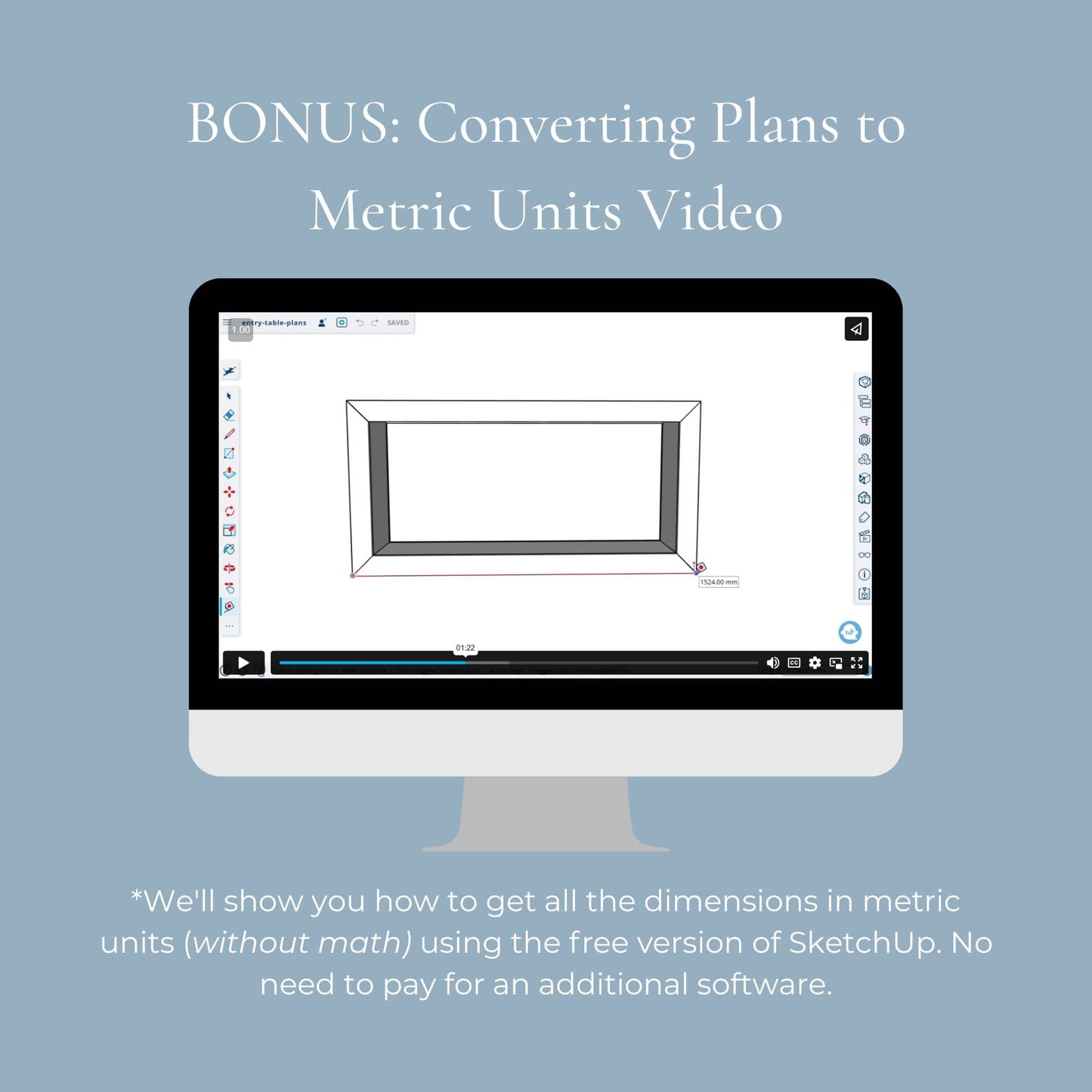

  6. BONUS: How to Convert Plans to Metric Units Using Sketchup Video

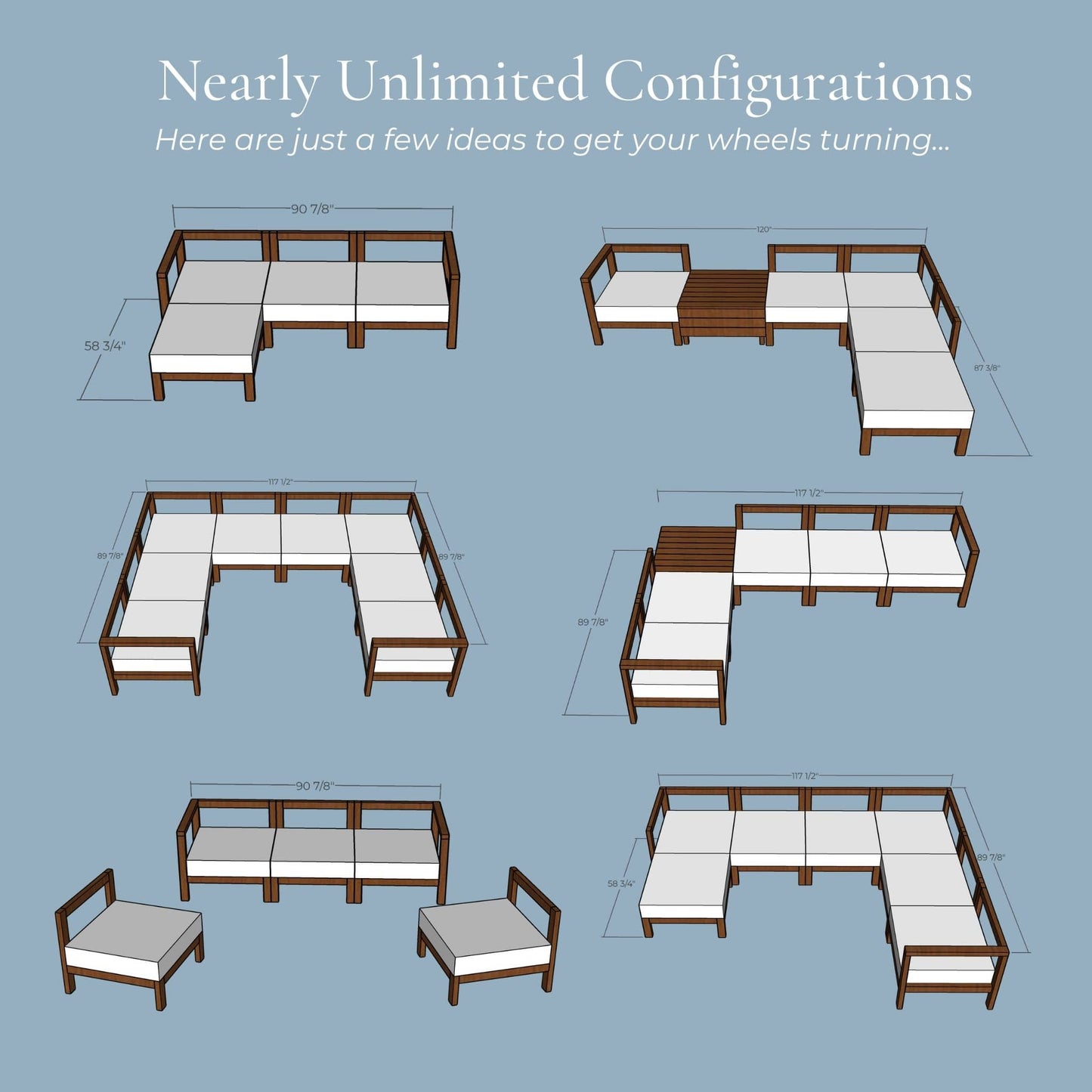

  7. BONUS: 12 sectional configuration ideas
  8. BONUS: A Cut List Calculator -- enter in your cushion size and how many of each of the modular pieces that you want and it'll spit you out a cut list customized to your dream sectional!

RECOMMENDED TOOLS FOR THIS PROJECT:

  1. Tape Measure
  2. Miter Saw
  3. Drill
  4. Kreg Jig
  5. Brad Nailer

OVERALL DIMENSIONS:

This printable plan includes 6 different plans to make your own customized modular sofa! Choose to build 1 piece or all 6, it's up to you! Your final project dimensions will vary based on which pieces you choose, but here's the dimensions for the individual pieces:

  • Armless Chair: 28 5/8" W x 30 1/8" D x 26" H
  • Ottoman (without cushion on top): 28 5/8" W x 28 5/8" D x 9.5" H
  • One Arm Chair: 31 1/8" W x 30 1/8" D x 26" H
  • Corner Piece: 30 1/8" W x 30 1/8" D x 26" H
  • Ottoman Coffee Table: 36.5"W x 20"D x 19.25" H
  • Storage Coffee Table: 30 1/8" W x 30 1/8" D x 26" H

With our cushions, our final seat height is 15.5" tall (this can be changed using the bonus calculator if you want something taller or more low-profile). We used the Segovia 28.75x28.75 replacement cushions from World Market, but thanks to the bonus calculator, you can use any cushions you want!

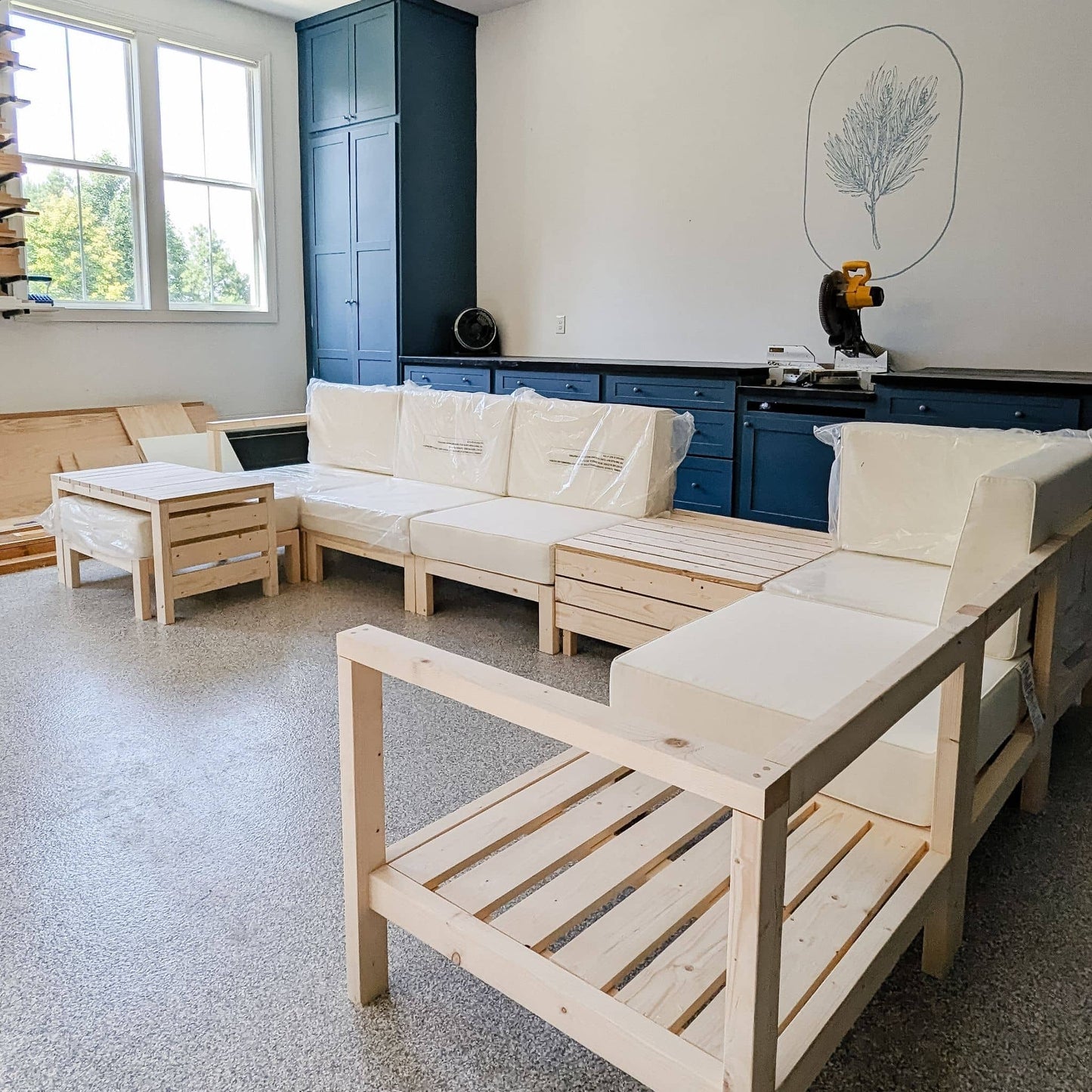

We built 9 pieces for $250 in lumber.

PLEASE NOTE: This is a digital product. Nothing physical will be shipped to you. Ensure your email address is correctly entered on the checkout page. PDF download and SketchUp file will be delivered via the provided email address.

All measurements are standard (aka feet and inches), NOT metric.

This is a personal single-use license, not for resale or professional use.

How To Access

Immediately after check out, you'll be able to download your purchase. Within 15 minutes, you'll also receive an email with your repeat download link.

If you don't receive an email within 15 minutes of purchasing, please check your spam and promotions folders and then reach out to support@pineandpoplar.com. We'll get you taken care of ASAP.

Satisfaction Guarantee

We know you'll love our products. They are oozing with value and designed to be as helpful as possible. But we know it can be hard to ignore that nagging voice in the back of your head that says "what if this stinks..."

That's why we offer a 14-day happiness guarantee. If you're not completely satisfied with your purchase, for any reason, let us know and we’ll work with you to make it right, even if that means a full refund.

View full details

Customer Reviews

Based on 10 reviews
90%
(9)
10%
(1)
0%
(0)
0%
(0)
0%
(0)

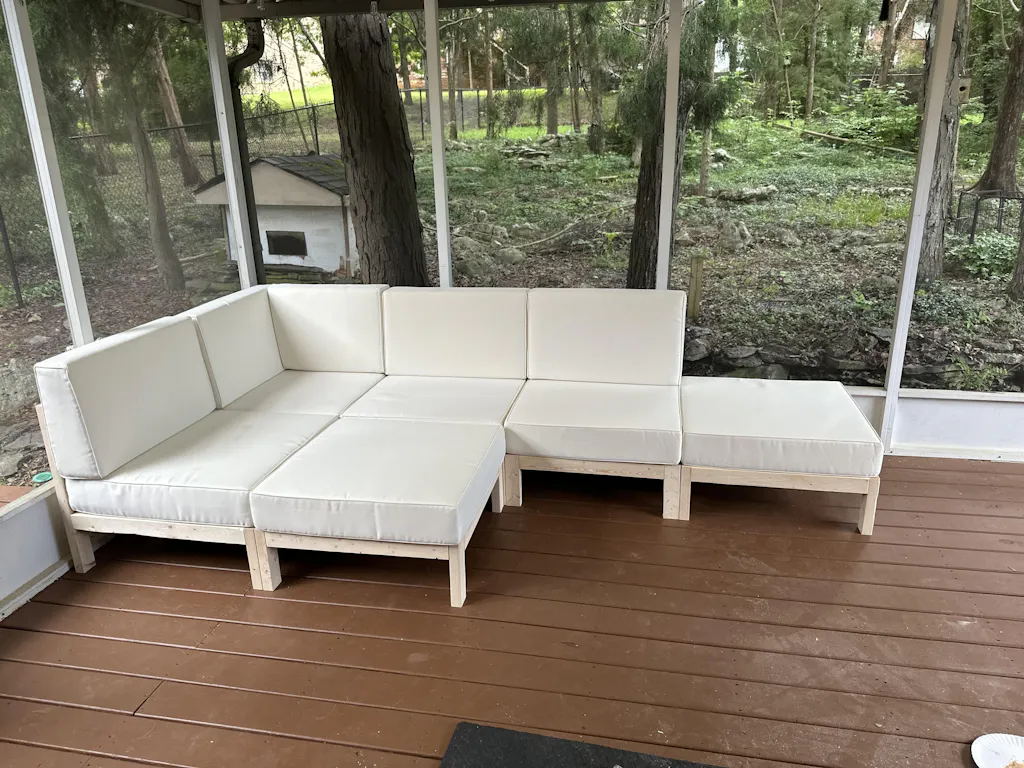

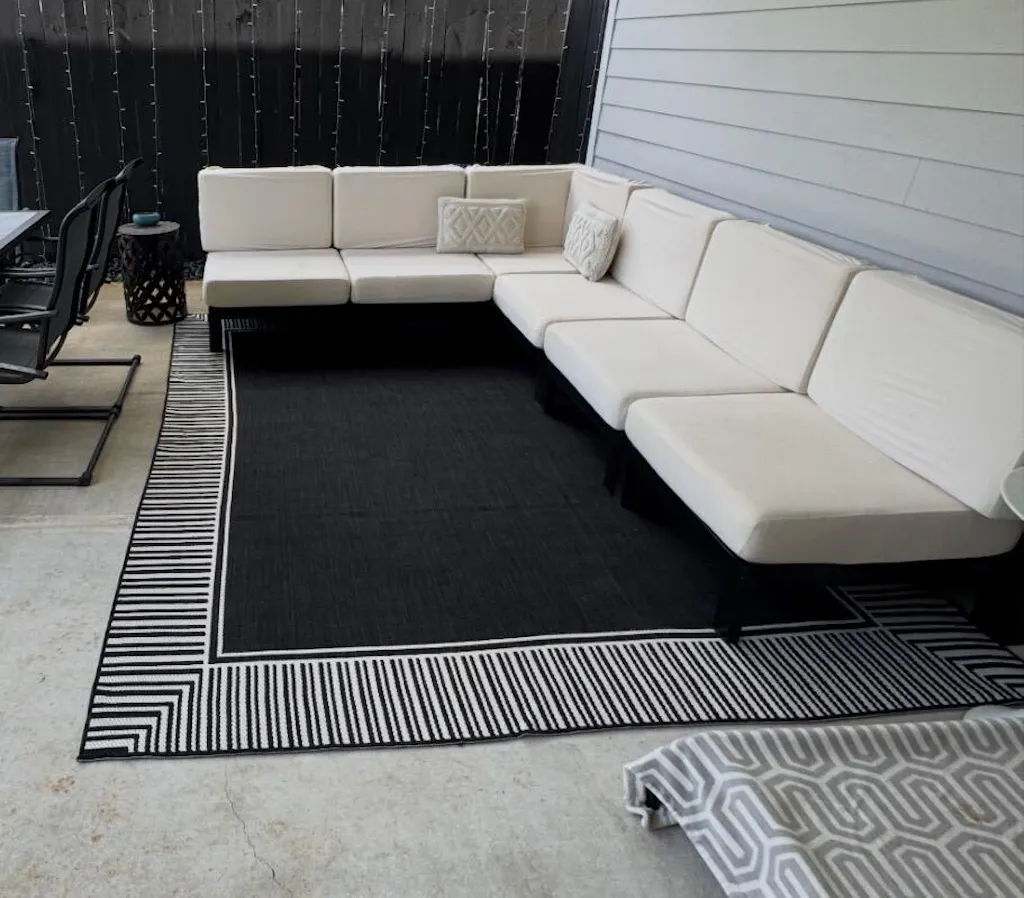

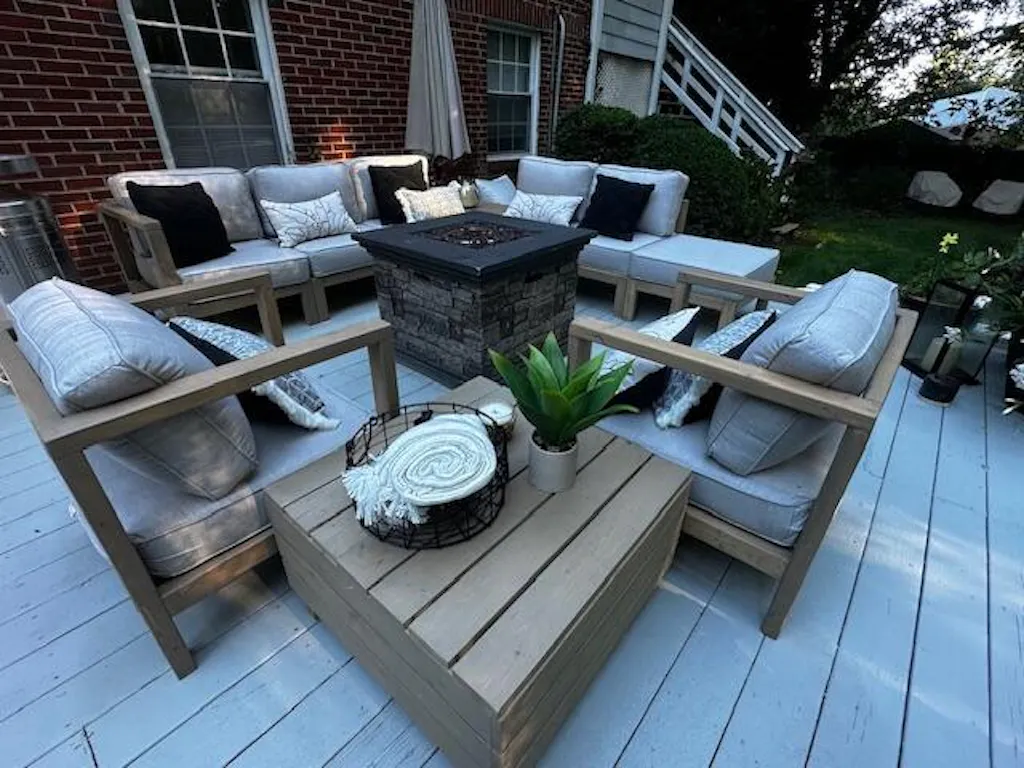

D
Denise

Can’t wait to make this. The plans are exemplary and so simple to follow. And the detail … amazing.

B
B

Great design & easy to build.

B
Bradford Qua

Absolutely love! Plans are so helpful and great direction.

K
Kasey Colburn

They were easy to follow and provided all instructions needed to complete this awesome project!

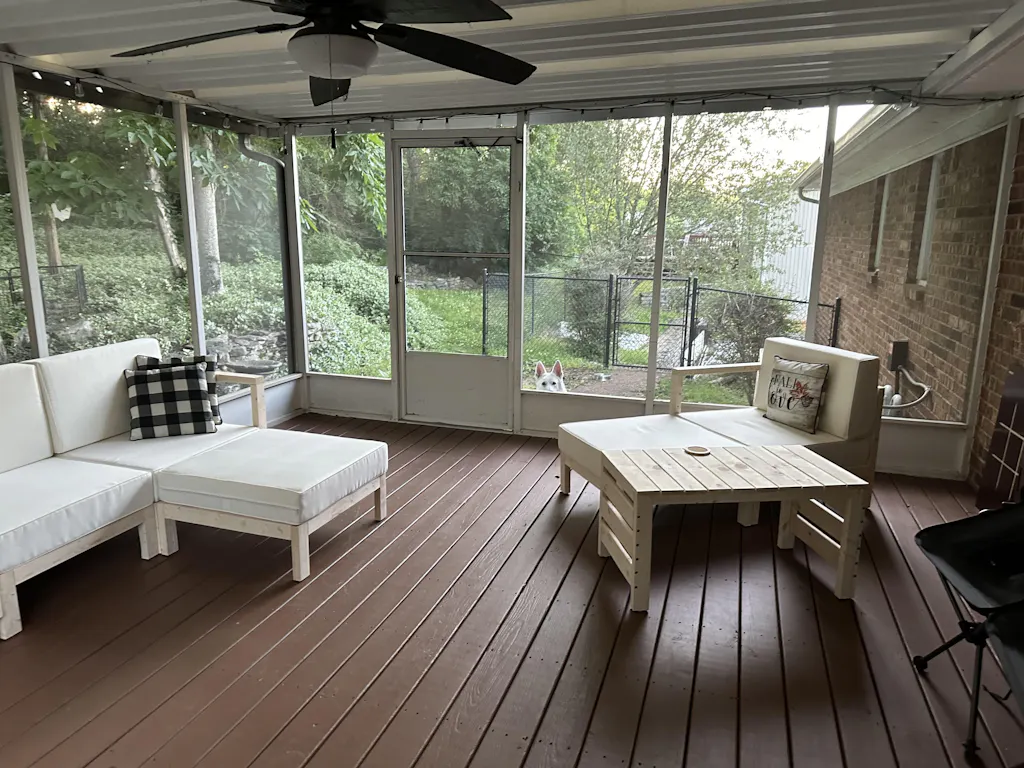

C
