Miter Saw Stand Printable Plans
Miter Saw Stand Printable Plans
Couldn't load pickup availability
THIS PLAN IS ALSO AVAILABLE AS PART OF THE IDEAS FOR THE DIYER'S WORKSHOP GUIDE.

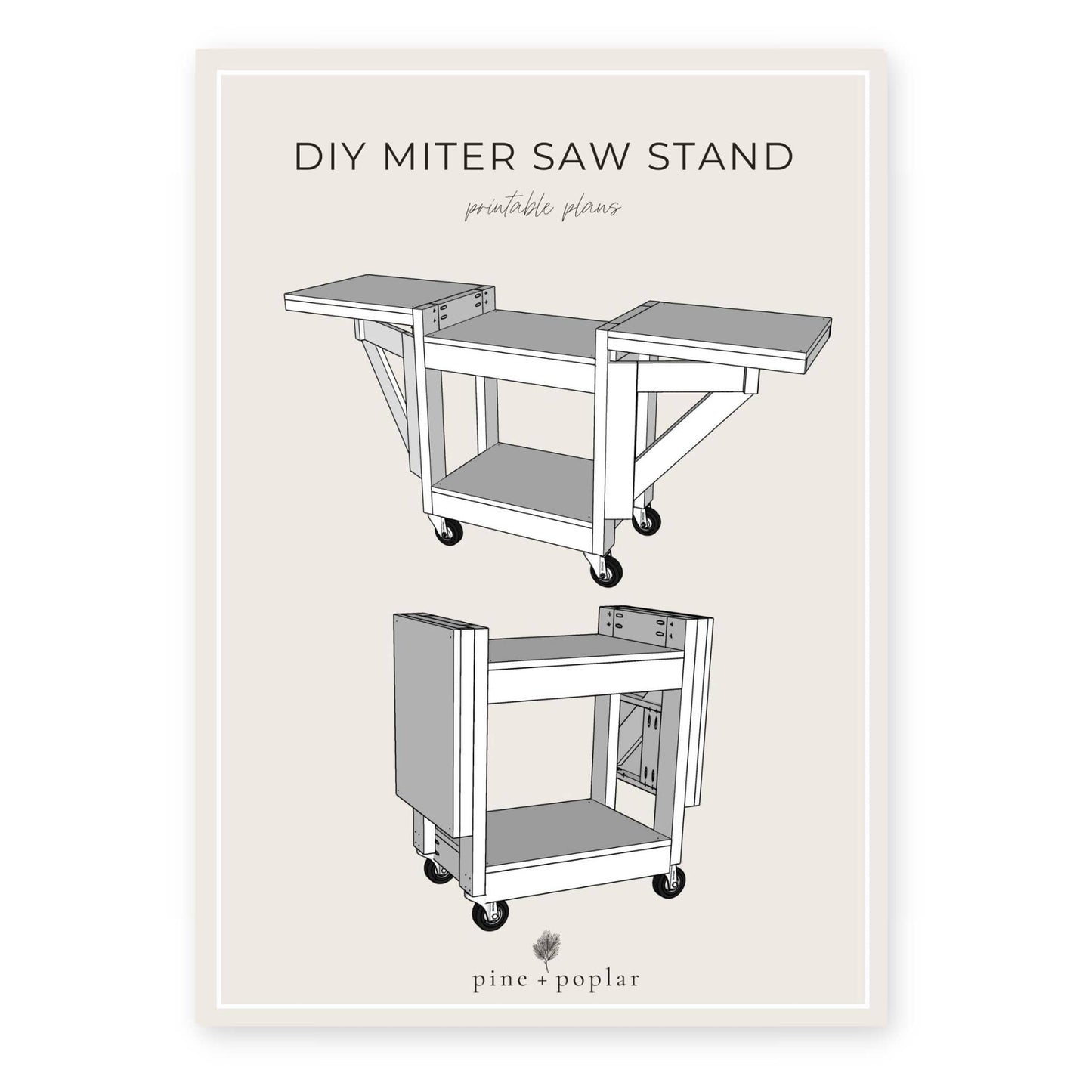

Build your own miter saw stand using these step-by-step premium printable plans!

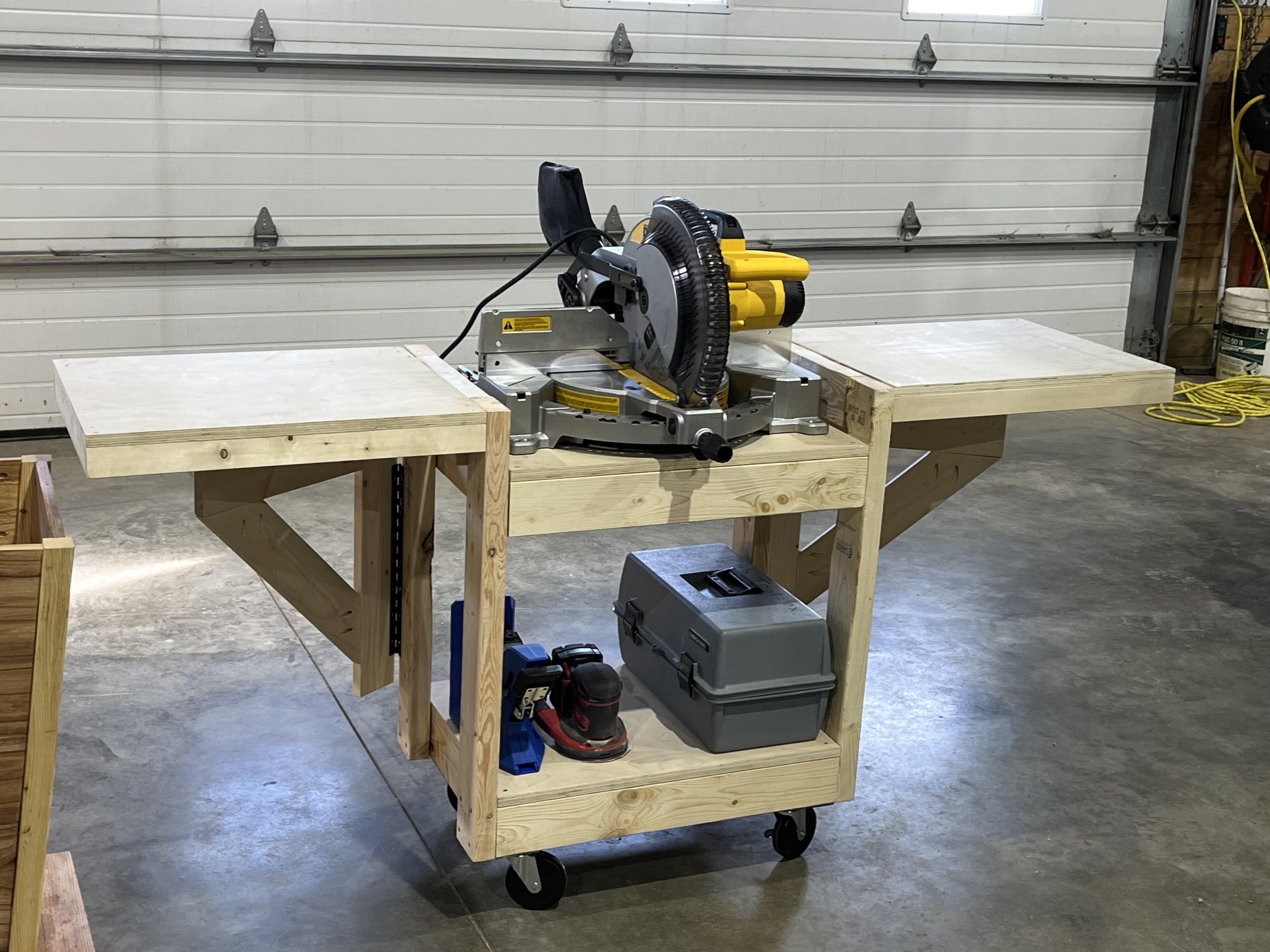

This miter saw stand is designed to be compact and mobile. It features foldable wings that help support your wood when cutting. You can also clamp a scrap piece of wood to them to create a stop when you need multiple cuts of the same size.
When not in use, the wings and fold down for more compact storage. The miter saw stand also features locking wheels, meaning you can roll it around your workspace with ease, but lock the wheels when in use for a stable base.

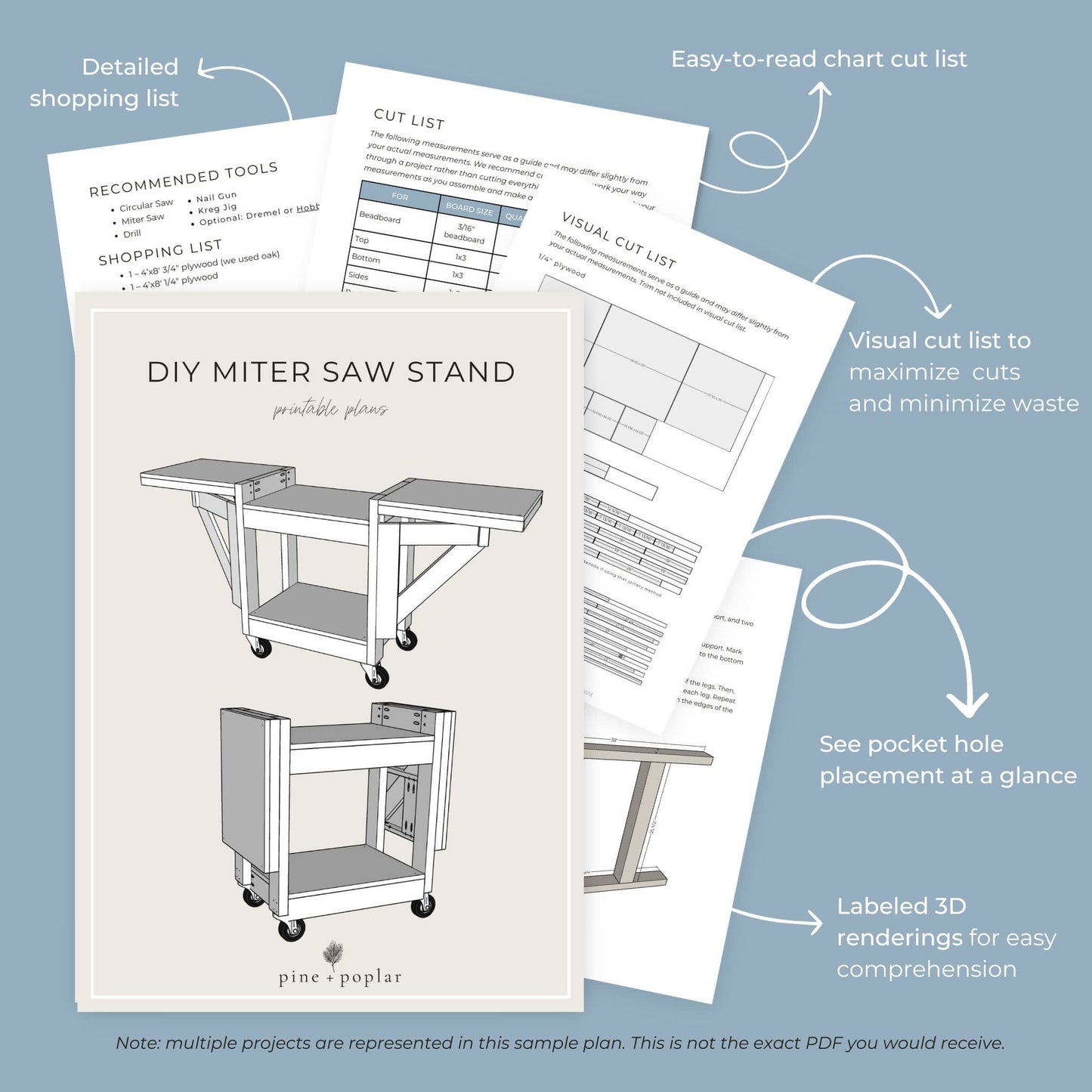

PREMIUM PLANS INCLUDE:
- 3D renderings labeled with dimensions and important call-outs
- Step-by-step instructions
- Shopping list
- Cut list provided 2 ways: an easy-to-read chart, and a visual cut list to see how to cut each board to minimize waste
- BONUS: 3D SketchUp file of the project

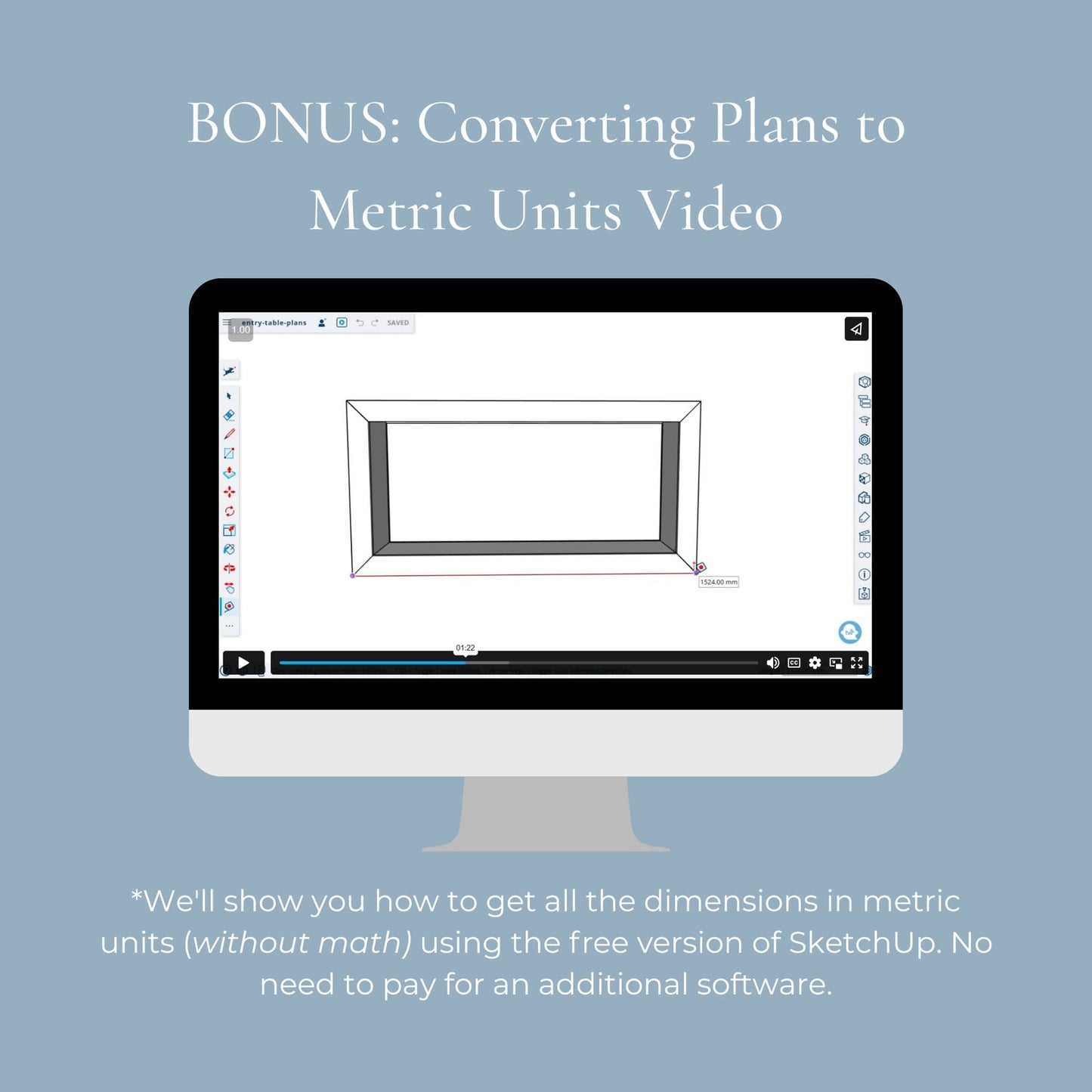

- BONUS: Converting Plans to Metric Units Using SketchUp Video
RECOMMENDED TOOLS FOR THIS PROJECT:
- Tape Measure
- Circular Saw
- Miter Saw
- Drill
- Kreg Jig
OVERALL DIMENSIONS:

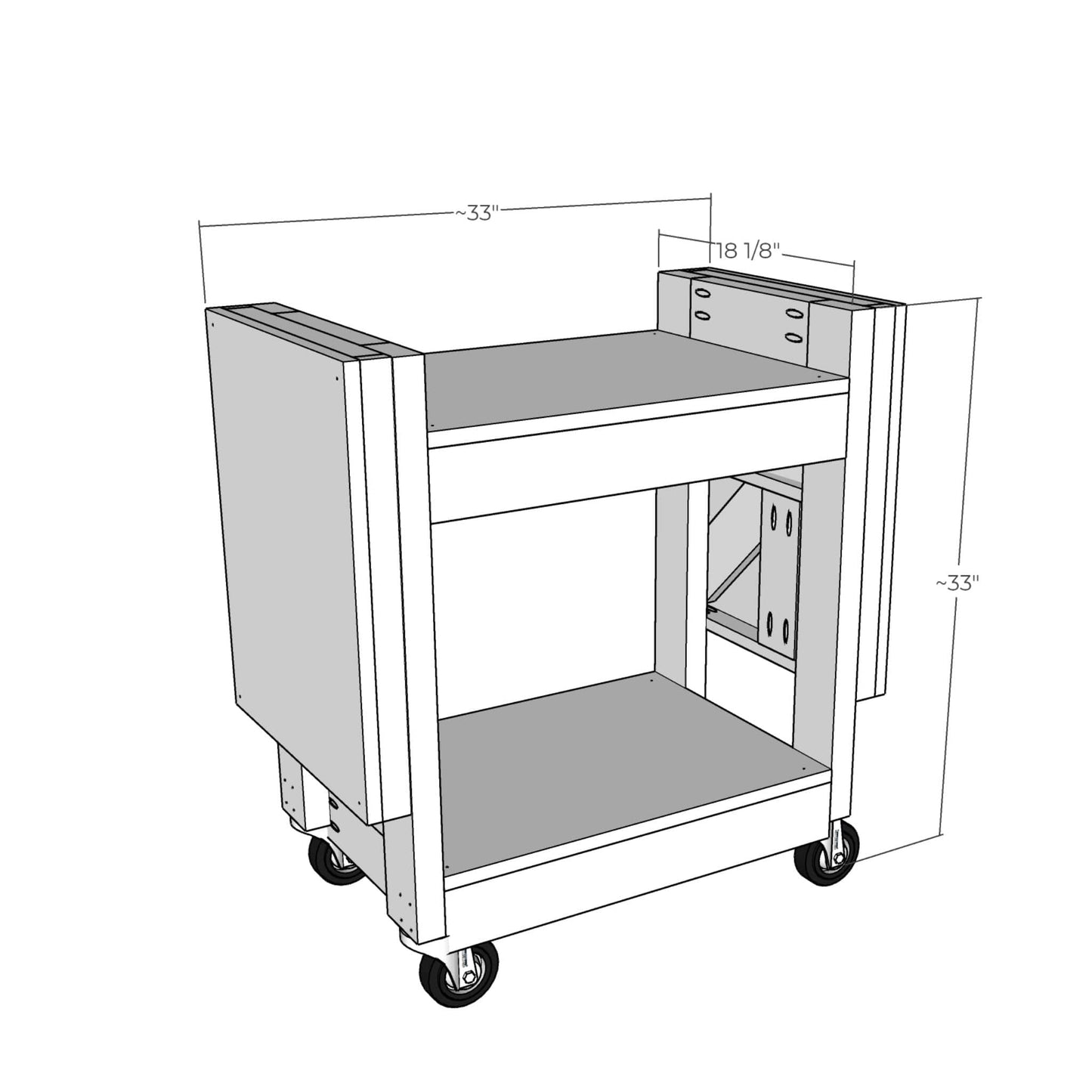

Approximately 33” W x 18 1/8” D x 33" H (when wings are down). The platform for the miter saw itself is 18 1/8" D x 24 1/4" W
Approximately 83.8 cm W x 46 cm D x 83.8 cm H* (when wings are down)
*Do you offer plans with metric units? All of our plans are in inches. Because every country offers different wood sizes, we cannot make a standard plan using metric units. What we do instead is provide the SketchUp file as a free bonus and a video on how to use the tape measure tool in the free version of SketchUp to convert each piece to mm or cm without any math.
Can I adjust the dimensions of this project to better fit my space? Yes! That’s the beauty of DIY: being able to customize plans to your exact dimensions and design. We’ve included the SketchUp file as a free bonus to these printable plans, meaning you can adjust the dimensions in SketchUp and actually visualize how they will look before you start building. SketchUp is also a great way to double-check that you’ve made all your adjustments correctly ;)
If you want more guidance on how to adjust the dimensions with or without SketchUp, check out our “How To Adjust Dimensions of Existing Plans” Masterclass.
PLEASE NOTE: This is a digital product. Nothing physical will be shipped to you. Ensure your email address is correctly entered on the checkout page. PDF download and SketchUp file will be delivered via the provided email address.
All measurements are standard (aka feet and inches), NOT metric.
This is a personal single-use license, not for resale or professional use.
What You'll Receive
What You'll Receive

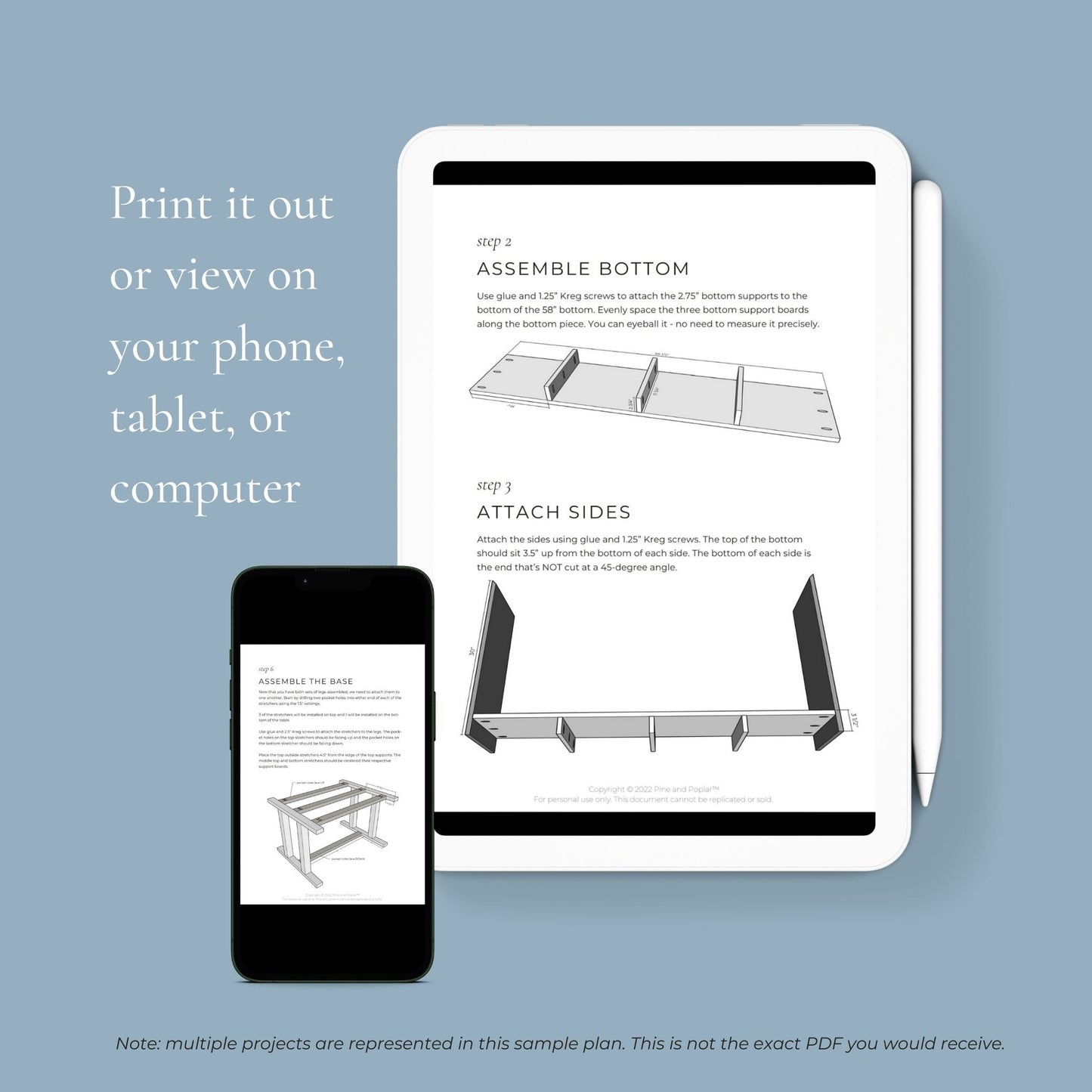

- PDF of the printable project plan that can be printed or viewed on any device
- The 3D SketchUp file for the project
Satisfaction Guarantee
Satisfaction Guarantee
We know you'll love our products. They are oozing with value and designed to be as helpful as possible. But we know it can be hard to ignore that nagging voice in the back of your head that says "what if this stinks..."
That's why we offer a 14-day happiness guarantee. If you're not completely satisfied with your purchase, for any reason, let us know and we’ll work with you to make it right, even if that means a full refund.
What You'll Get:
-
Printable PDF
Complete with easy-to-follow instructions, labeled 3D renderings, shopping list, and detailed cut lists - both chart form and visual.
-
3D SketchUp File
As an added bonus, you'll also receive the editable 3D SketchUp file of your project. Complete with tags of the wood sizes used, and dimensions. Great for visualizing customizations and quickly updating dimensions to better fit your space.
